Raw material: river sand

Capacity: 250 t/h

Water consumption: 0.5-0.9 tons of water for 1 cubic sand

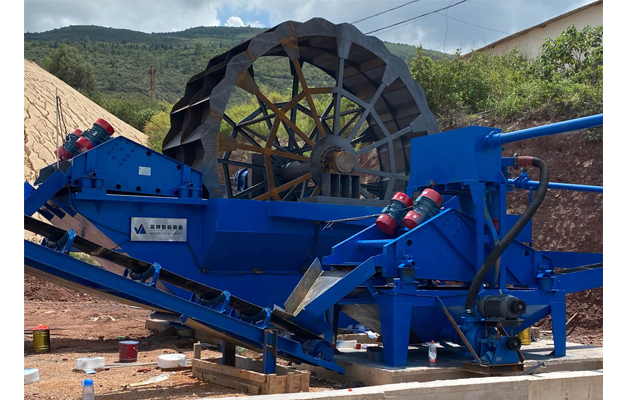

Equipments: wheel bucket sand washer, dehydration recovery integrated machine, belt conveyors.

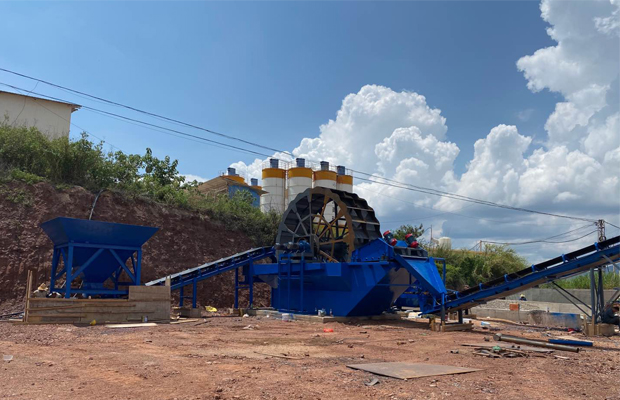

This project is located in Malaysia. The working principle of this production line is: the motor drives the impeller to rotate slowly after deceleration through the V-belt, reducer, and gear. The sand and gravel enter the washing tank with the feeding trough, roll under the impeller, and grind each other to remove the covered gravel. Impurities on the surface destroy the water vapor layer coated with sand grains to facilitate dehydration. At the same time, water is added to form a strong water flow to timely take away impurities and foreign objects with small specific gravity and discharge them from the overflow washing tank to complete the cleaning effect. The clean sand and gravel are taken away by the blades, and the gravel is poured into the discharge chute from the rotating impeller, and then enters the dehydration recovery machine for dehydration to complete the cleaning of the gravel.

Advantages:

1. Simple structure and stable operation.

2. The bearing is separated from water and materials to avoid damage caused by premature contamination and rusting of the machine.

3. It is suitable for various working environments.

4. The material to be washed has less loss and high efficiency of selective washing, which can completely meet the requirements of high-grade materials.

5. The service life is relatively long, and there are almost no wearing parts.

6. Maintenance is required in rare cases, so the cost can be greatly reduced.
