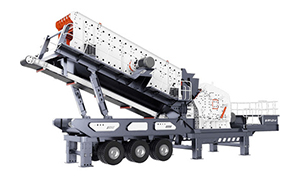

Mobile Cone Crushing Plant
- Introduction
- Mobile Cone Crushing Plant has high flexibility in transportation with low cost in comprehensive use. Clients can adopt a variety of configurations according to the type of raw materials, sizes and finished materiel requirements.
- Capacity
- 0-1000t/h
Description
- Mobile Cone Crushing Plant is as Secondary Crushing Plants which can be adopted different series Cone Crusher. It is mainly for processing materials in mining, quarry, mixing and batching plant, road and building construction, highway, railway and subway, and water conservancy etc.. According to different types of raw materials, capacity and product material requirements, customers can adopt a variety of forms of configuration.
Advantages
-
1
It adopts ship form steel structure and low vehicle chassis with light weight. -
2
Equipped with cone crusher, High performance of secondary crushing. -
3
Customizing our customers' needs by changing the main equipment. -
4
Flexible parking function, quickly access to the operating mode integral crushing & screening. -
5
Landing legs adopt hydraulic lift mode which is of convenient operation and reliable performance. Flexible parking function, quickly access to the operating mode. -
6
With overall streamlined body design and metallic paint spraying. -
7
Perfect combination of mechanics and aesthetics.
Structure
More types of crushers can be installed on the same vehicle chassis, the feeding system, crushing system and screening system can be exchangeable, and extra investment is only one unit equipment. In the short time, the different models of feeding unit, crushing unit and screening unit can be changeable in the same vehicle chassis. The perfect fit among the systems can be widely adapted in the different situation.
Technical Parameters
| Model | Vibrating Screen | Cone Crusher | Belt Conveyor | Capacity (t/h) | Power (kw) | Overall Dimension L×W×H(mm) | Weight(t) |
| M3S1548Y900 | 3YZS1548 | PYB900 | B500×7M | 50-200 | 75 | 13000×2800×6400 | 43 |
| M3S1848S36 | 3YZS1848 | ZYS36 | B650×7M | 70-300 | 99-134 | 13000×3000×6700 | 47 |
| M3S1860S51 | 3YZS1860 | ZYS51 | B650×8M | 120-400 | 212.5-220.5 | 14000×3000×6700 | 53 |
