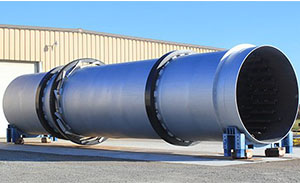

Rotary Kiln
- Introduction
- Rotary Kiln is as the building material equipment, as per the different materials,it can be divided into cement kiln, metallurgy chemical kiln and lime kiln: Cement kiln is used for making cement clinker and there are dry and wet methods to make cement clinker. Metallurgy chemical kiln is widely used for magnetic roasting of poor iron ore and oxidizing roasting of chrome and nickel in the steel factory; backing high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminum factory and baking chrome ore and chrome powder in the chemical plant.
- Capacity
- 0-116t/h
Description
- Rotary Kiln is as the building material equipment, as per the different materials,it can be divided into cement kiln, metallurgy chemical kiln and lime kiln: Cement kiln is used for making cement clinker and there are dry and wet methods to make cement clinker. Metallurgy chemical kiln is widely used for magnetic roasting of poor iron ore and oxidizing roasting of chrome and nickel in the steel factory; backing high-alumina mine in the refractory material factory; baking chamotte and alumina in the aluminum factory and baking chrome ore and chrome powder in the chemical plant.
Advantages
-
1
The rotary kiln has high output and is suit for being applied to the large active lime production line. In the world now, there is lime rotary kilns with the capacity of 2,200t per day being put into production; many 150-300 t/d lime rotary kilns have been established and run well at home and abroad. The rotary kiln can also be adopted by middle and small-sized enterprises. -
2
The rotary kiln is open-calcination kiln with simple structure, and the sulfur-containing flue gas can be discharged timely without the adhesion of the sulphur materials, which makes the sulphur content of the product be low and meet the steel making requirements. In addition, the materials evenly roll forward in the kiln and are evenly heated, so the the quality of the product is stable with low under firing and over firing rate, and the rotary kiln can calcine the lime with high activity for steel making. Under the same conditions, the activity degree of the lime produced by the rotary kiln is higher (averagely 30ml higher) than the activity of the lime produced by the gas kiln, and generally the activity degree of the lime produced by the rotary kiln is 340-380ml even up to 400ml. -
3
The rotary kiln can directly calcine the 10-50mm limestone. For general mines, the 0-30mm limestone which can not be processed by other kiln type accounts for 30-40% of the total output. And with the raw materials of the iron and steel being more refined, the limestone is gradually replaced by the quick lime in the sintering process and the fine-sized limestone can not be comprehensive utilized. Building a production line with rotary kiln can not only utilize high-quality limestone mine, but also achieve the sustainable development of the lime industry. -
4
Equipped with a vertical preheater at the kiln tail can fully utilize the high-temperature flue gas to preheat the limestone with normal temperature to the initial decomposition state, which can not only enormously improve the output of the rotary kiln, but also fully reduce the heat consumption of the unit product. -
5
Equipped with a vertical cooler at the kiln head can not only suddenly cool the high-temperature lime and improve the activity of the product, but also be convenient for transporting and storage. It can also obtain the secondary air entering the kiln with higher temperature, which can efficiently improve the firing temperature in the kiln and reduce the fuel consumption. -
6
The flue gas discharged from the vertical preheater at the kiln tail has low temperature, about 280-350℃ with low dust content about 20g/Nm3, which makes the configuration of the follow-up flue gas treatment be simple and efficient to smoothly meet the environmental requirements. -
7
The biggest advantage of the rotary kiln is that the quality of the lime it produced is stable.
Structure
The Rotary Kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc., the kiln body has a certain tilt angle with level.The whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.
Material will be feed into kiln tail through chute in gas chamber. As kiln shell is inclined and it rotates slightly, material will move along round shell and will also move along shaft direction from kiln tail to kiln head. Material will be processed through pre-heat, decompose, calcined and will be feed into cooler. Fuel will be given through gas or coal burner at kiln head and will be combusted in kiln. Heat will be transferred to material by fire radiate, hot air flow, kiln brick transfer. The heat will heat and calcine material enough and make it final product.
Technical Parameters
| Molde | Parameter | Main reducer | Main motor | |||||||
| Speed（r/min） | Slope(%) | Capacity(t/h) | Model | speed ratio | Model | Power（kw） | Speed（r/min） | Support quantity | Weight（t） | |
| φ1.6×36 | 0.26-2.63 | 3 | 0.6-1.5 | ZL750 | 48.57 | YCT250-4B | 22 | 1320/132 | 3 | 47.5 |
| φ1.8×45 | 0.16-1.62 | 4 | 1-4.5 | ZS110-5 | 80 | YCT280-4A | 30 | 1320/132 | 3 | 80 |
| φ2.2×50 | 0.125-1.25 | 3.5 | 2-8 | ZS145-11 | 160 | YCT280-4A | 45 | 1320/132 | 3 | 130.71 |
| φ2.5×50 | 0.62-1.86 | 3.5 | 7.5-15 | ZS145-7 | 100 | YCT355-4A | 55 | 1340/440 | 3 | 167.5 |
| φ3×48 | 0.47-1.40 | 3.5 | 15-20 | ZS145-7 | 100 | YCT355-4B | 75 | 1340/600 | 3 | 237 |
| φ3.2×50 | 0.398-3.975 | 3.5 | 20-50 | ZL130-16 | 40 | ZSN4-280-11B | 190 | 1000 | 3 | 263 |
| φ3.3×52 | 0.391-3.91 | 3.5 | 24-55 | ZSY500-28 | 28 | ZSN4-315-082 | 190 | 1000 | 3 | 280.8 |
| φ4×60 | 0.396-3.96 | 3.5 | 32-105 | ZSY630-35.5 | 35.5 | ZSN-355-092 | 315 | 1000 | 3 | 487.5 |
| φ4.2×60 | 0.4165-4.165 | 3.5 | 45-116 | ZSY710-35.5 | 35.5 | ZSN4-355-12 | 355 | 1000 | 3 | 576.1 |
