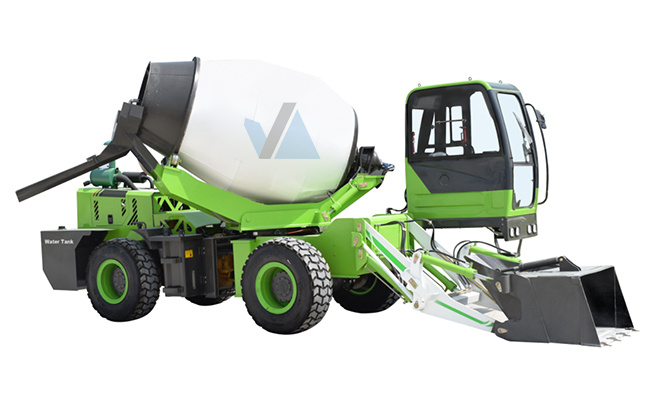

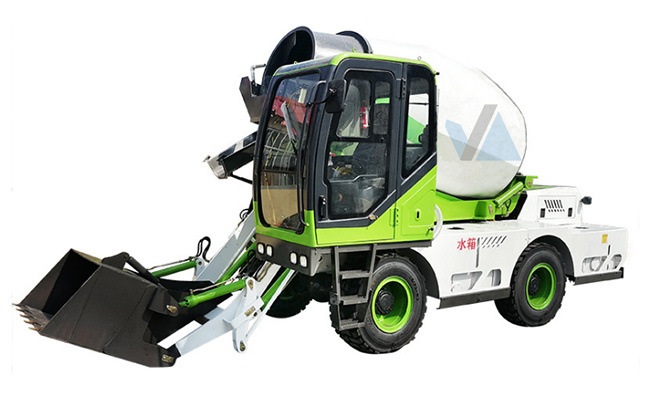

Self Loading Concrete Mixer Truck
- Capacity
- 1.2CBM-6.5CBM
- Improvement
- Self Loading Concrete Mixer Truck combines the function of the mixer truck, concrete mixer and wheel loader together which can automatically feed, measure, mix and discharge concrete.
Description
- Configure with the weighing system which can measure all materials. A powerful engine and 4 wheels drive make it very convenient for loading material and long distance transportation. This mixer only needs one operator to drive, load and mix raw material while moving. It has a higher working efficiency and greatly reduces the labor cost and working time.
Advantages
-
1
Italy technology, self propelled concrete mixing system. -
2
High efficiency,labor-saving -
3
Easy operation and control. -
4
Mixer and loader joint together perfectly. -
5

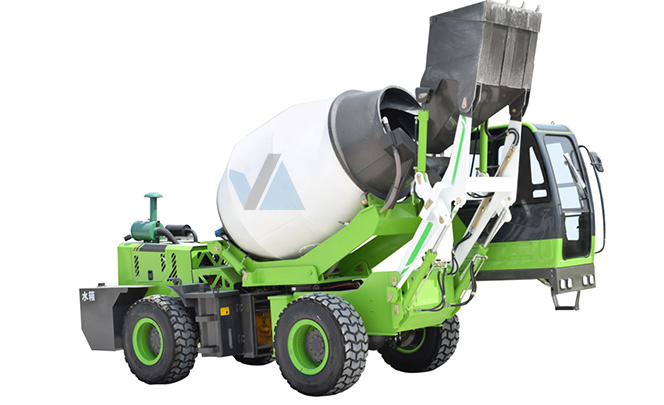

Bottom Hydraulic Lifting Mechanism for easy discharge of material. -
6
Different directions to discharge materials.
Working Principle
Self Loading Concrete Mixer Truck comprises a mixing body, and the body is equipped with a mixing drum. The drum is driven to rotate by the hydraulic mechanism. The drum is inclined, with an opening at the highest end. At the opening there is a feeding port fixed to the mixer truck. The drum is equipped with stirring screws. The two sides of the mixing drum are symmetrically provided with a boom. One end of the boom is hinged on the mixing body, and the body is further provided with a lifting cylinder to lift and lower the booms. A hopper is fixed between the two booms, and is provided with a door at the end near the feeding port. A discharging cylinder for controlling opening and closing of the door is provided on the hopper. The fully automatic loading mixer has a simple structure and is easy to use.
It can realize the loading, mixing and unloading of concrete without excessive staff operation, which is economical and practical.
Technical Parameters
| Model | MSL1200 | MSL2000 | MSL2600 | MSL3500 | MSL4000 | MSL5500 | MSL6500 |
| Capacity | 1.2m3 | 2m3 | 2.6m3 | 3.5m3 | 4m3 | 5.5m3 | 6.5m3 |
| Drum Volume | 2.2m3 | 2.8m3 | 3.6m3 | 5.3m3 | 6.1m3 | 7.8m3 | 9.2m3 |
| Rotation Speed | 13 rpm | 13 rpm | 13 rpm | 20 rpm | 17 rpm | 20 rpm | 17 rpm |
| Weighing System | Config the electronic hydraulic weighing system to weigh water, cement, sand and aggregate, the weighing number will be shown on the screen in the cab. | ||||||
| CAB | Config with driving image / Closed cab with air conditioner / Tilting front window / Humanized seat with flexible suspension and height adjustment. | ||||||
| Engine | YUNEI, YN27GBZ | YUCHAI, YCD4T22T-105 | YUCHAI, YCD4T22T-105 | YUCHAI, YCD4J22G | YUCHAI, YCD4J22G | FAW 6110, Turbo-charged | DEUTZ, WP6G125E331 |
| Engine Power | 55kw | 78kw | 78kw | 85kw | 85kw | 110kw | 92kw |
| Drive Form | 4*4 | 4*4 | 4*4 | 4*4 | 4*4 | 4*4 | 4*4 |

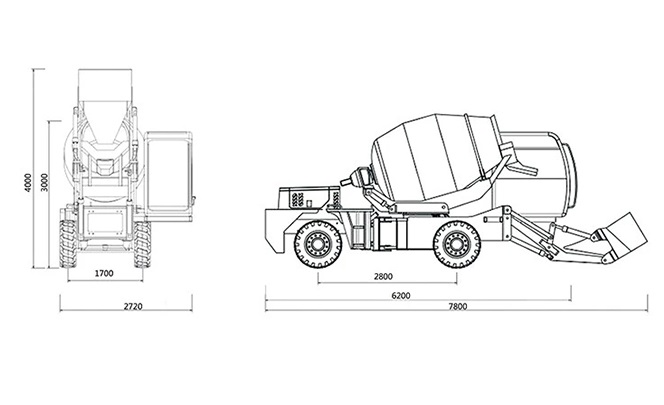

| Dimensions (L*W*H) | 6400x2550x2450mm | 7300x2650x2750mm | 7800x2720x3000mm | 7830x2680x3300mm | 7500x2850x3500mm | 8450x3100x3640mm | 8450x3050x3860mm |
