Single Cylinder Hydraulic Cone Crusher
- Capacity
- 30-1050t/h
- Improvement

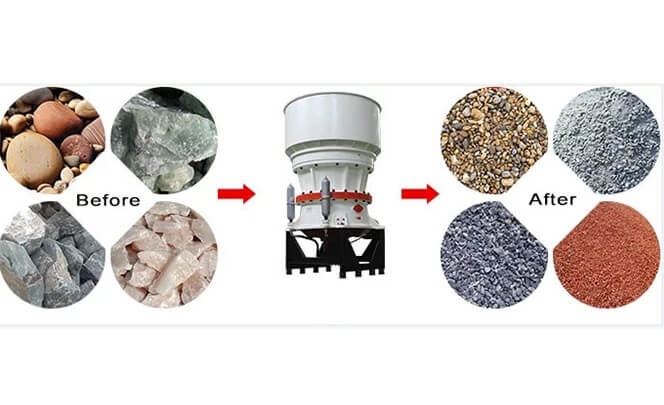

- The Single-cylinder cone crusher is suitable for various rocks no matter it is hard, soft, or abrasives. With proper operation, the running cost of the cone will be much lower than the impact crusher and will produce less fine powder.
Description
- Introduction
- Single-cylinder hydraulic cone crusher is a kind of high efficiency crusher integrating mechanic, hydraulic, electrical, automation, intelligent control and other technologies. The unique design of the bottom consists of three important functions of direct adjustment of discharge port, prevention of iron passing and cavity cleaning. The hydraulic cone crusher is widely used in mining, metallurgy, building materials, highway, railway, water conservancy, chemical industry, etc.; and are suitable for crushing ores and rocks with high hardness and high abrasiveness.
Advantages
-
1
High production capacity; -
2
Low cost; -
3
Easy adjustment and maintenance; -
4
Excellent particle shape after crushing.
Structure
When the single-cylinder hydraulic cone crusher is working, motor drives the eccentric sleeve by v-belts, transmission shaft and transmission gear. Dynamic cone-rotary pendulum moved with the action of eccentric sleeve, the moving cone and fixed cone sometimes near sometimes deviation. Material is squeezed in the crushing cavity, impact and breakage, broken material discharge from the bottom.
Technical Parameters
Model | Crushing cavity type | Feeding size (mm) | Discharging size (mm) | Power (KW) |
HTS100 | S1 Extra Coarse | ≤240 | ≥22 | ≤90 |
S2 Medium Coarse | ≤200 | ≥19 | ||
H1 Fine | ≤135 | ≥10 | ||
H2 Medium Fine | ≤65 | ≥8 | ||
H3 Extra Fine | ≤38 | ≥4 | ||
HTS160 | S1 Extra Coarse | ≤360 | ≥25 | ≤160 |
S2 Medium Coarse | ≤300 | ≥22 | ||
H1 Fine | ≤235 | ≥19 | ||
H2 Medium Fine | ≤185 | ≥13 | ||
H3 Extra Fine | ≤90 | ≥10 | ||
S1 Extra Coarse | ≤50 | ≥6 | ||
HTS250 | S1 Extra Coarse | ≤450 | ≥35 | ≤250 |
S2 Medium Coarse | ≤400 | ≥29 | ||
H1 Fine | ≤300 | ≥25 | ||
H2 Medium Fine | ≤215 | ≥16 | ||
H3 Extra Fine | ≤110 | ≥13 | ||
S1 Extra Coarse | ≤70 | ≥8 | ||
HTS315 | S1 Extra Coarse | ≤560 | ≥41 | ≤315 |
S2 Medium Coarse | ≤500 | ≥38 | ||
H1 Fine | ≤275 | ≥16 | ||
H2 Medium Fine | ≤135 | ≥16 | ||
H3 Extra Fine | ≤65 | ≥13 |
